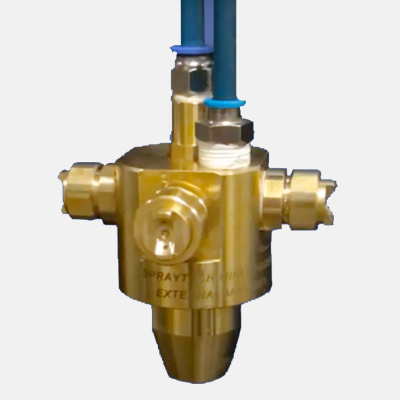

Nozzle type: 4-way fogger /humidifier
Spray type: fine fog
Operating pressure: For Liquid: 0.5 - 1 bar
For compressed air: 3 - 4 bar
Air consumption per unit: 10 - 15 CFM
Spray pattern: 360 degree flat curtain
Spray length: 3 - 5 meters diameter flat pattern curtain on an axis.
Spray angle: 90 degree for each tip
Flow rate: 4 LPH (low flow rate), 12 LPH (high flow rate)
Nozzle MOC: SS304, SS316, Brass
End connection: 1/4 (F) for Liquid
3/8 (F) for Compressed air
Average droplet size: 15 - 30 microns
Utilities required: pump (capacity based on number of operating nozzles)
Compressed air (based on air capacity required by nozzle)
