FULL CONE SPRAY NOZZLES

The Larger Nozzles in the DA Series are widely used in the industry, for a wide variety of applications. They maintain the simple design of the smaller nozzles, With the inherent resistance to clogging due to design of the X-vane and are often manufactured by any type of machinable material like SS304, SS316, PP/PVC etc.

Flow Rate : 96 LPM to 1200 LPM

Application : Surface spraying, Washing & Cooling of flue gasses to remove fly ash, Cooling condenser, Scrubbing, Foam breaking.

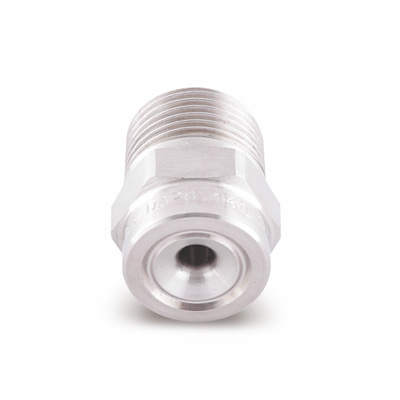

DA SERIES

FLOW RANGE : 1 TO 337 LPM
SPRAY ANGLE : 15, 30, 45, 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4", 1"

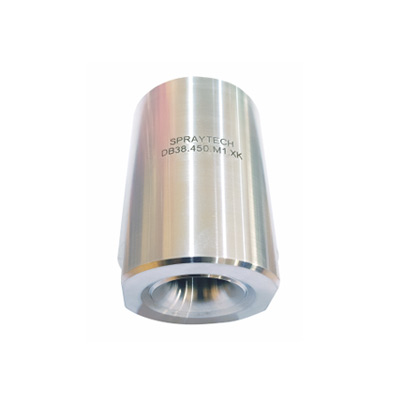

DB SERIES

FLOW RANGE : 1 TO 72 LPM
SPRAY ANGLE : 45, 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4", 1"

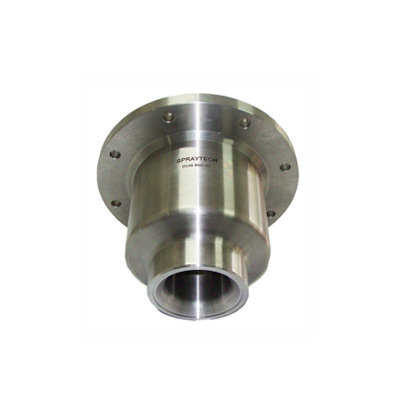

DC SERIES

FLOW RANGE : 800 TO 10000 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 3" TO 10" Flange end

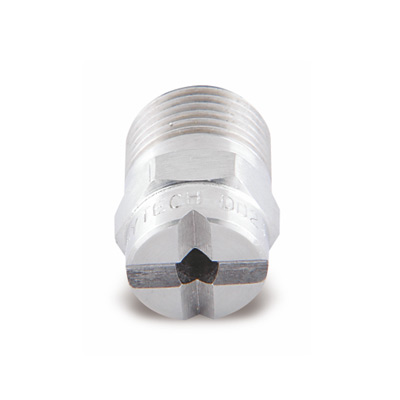

DD SERIES

FLOW RANGE : 1 TO 72 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4", 1"

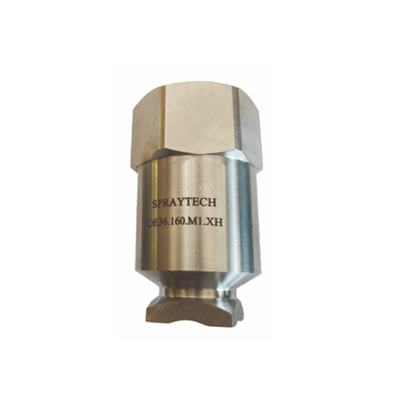

DE SERIES

FLOW RANGE : 1 TO 337 LPM
SPRAY ANGLE : 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1-1/4", 1-1/2", 2"

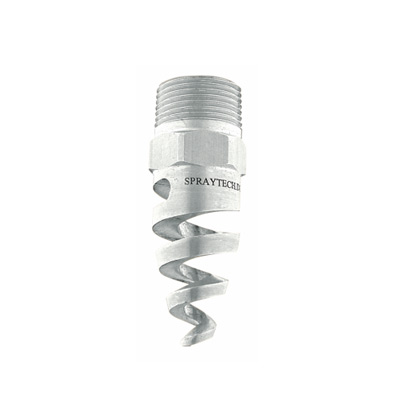

DF SERIES

FLOW RANGE : 4.75 TO 3125 LPM
SPRAY ANGLE : 60, 90, 120, 180
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3", 4"

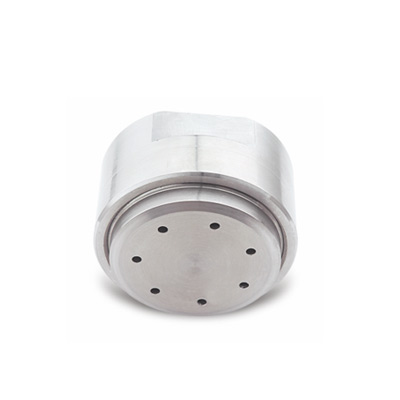

DG SERIES

FLOW RANGE : 1.5 TO 65 LPM
SPRAY ANGLE : 75, 130
MATERIAL : SS704, SS316
END CONNECTION : 1/2", 3/4"

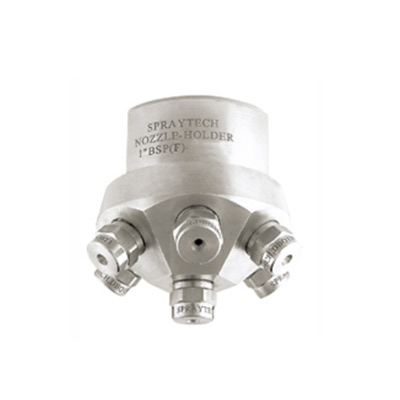

DH SERIES

FLOW RANGE : 12.5 TO 227 LPM
SPRAY ANGLE : 130
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 1", 1-1/2"

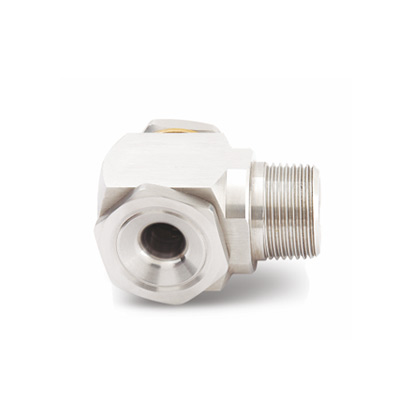

DI SERIES

FLOW RANGE : 3.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 3/8", 1/2", 3/4", 1"

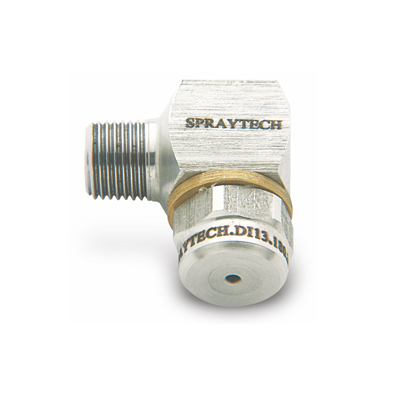

DJ SERIES

FLOW RANGE : 3.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 3/8", 1/2", 3/4", 1"

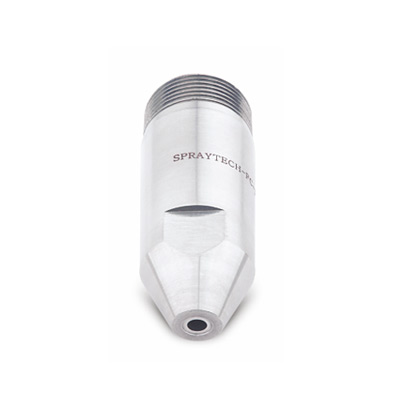

DK SERIES

FLOW RANGE : 1 TO 337 LPM
SPRAY ANGLE : 15, 30
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

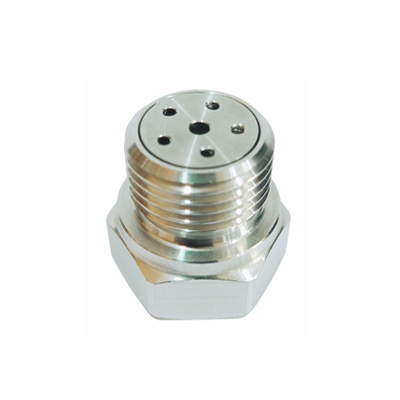

DM SERIES

FLOW RANGE : 4 TO 72 LPM
SPRAY ANGLE : 45, 60, 90, 130
MATERIAL : SS704, SS316
END CONNECTION : 1/2", 3/4" 1"
