FLAT SPRAY NOZZLES

Flat spray nozzles are a type of nozzle commonly used in various industrial applications for spraying liquids. They are designed to produce a flat, wide spray pattern, which is useful for coating or covering large surfaces evenly. These nozzles typically feature a rectangular orifice with an internal geometry that allows for the creation of the flat spray pattern.

Type "C" Flat Spray Nozzles are designed for high pressure washing applications. Their specially designed inner profile allows for even jet distribution, which results in effective and uniform cleaning action over the surface being processed. All nozzles are finished on high precision machinery assuring close manufacturing tolerances made out of AISI 316 grade stainless steel and all machinable material.

Design : One piece construction, Non clogging type.

Application : Surface Treatment, Roll Cooling, Degreasing & Rinsing, Lubricating, Industrial washing machines.


Flat spray nozzle

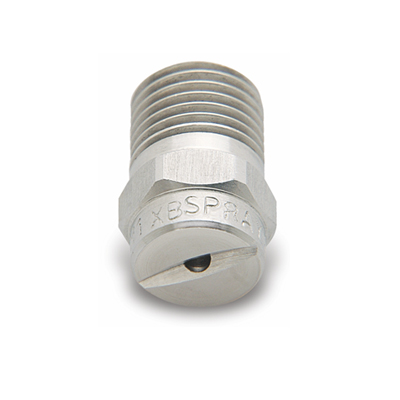

CA SERIES

FLOW RANGE : 0.5 TO 80 LPM
SPRAY ANGLE : 15, 30, 45, 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2"


Flat spray nozzle

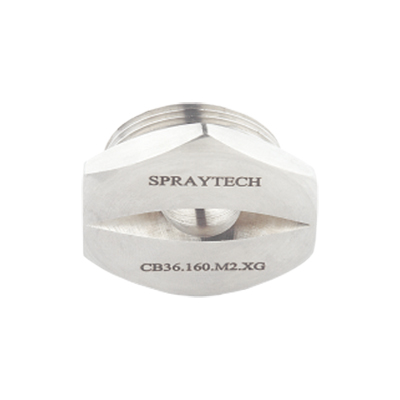

CB SERIES

FLOW RANGE : 0.5 TO 430 LPM
SPRAY ANGLE : 15, 30, 45, 60, 90, 120
MATERIAL : SS704, SS316, BRASS
END CONNECTION : 1/4", 3/4", 1", 2"


Flat spray nozzle

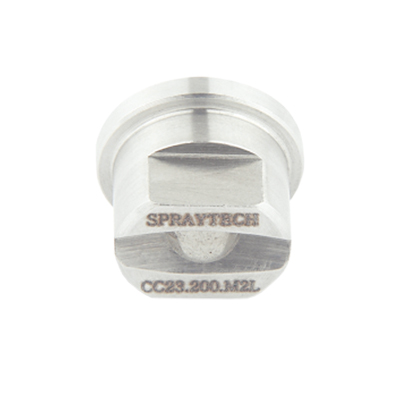

CC SERIES

FLOW RANGE : 0.5 TO 25 LPM
SPRAY ANGLE : 15, 30, 45, 60, 90, 120
MATERIAL : SS704, SS316, BRASS
END CONNECTION : Tip Type

Flat spray nozzle

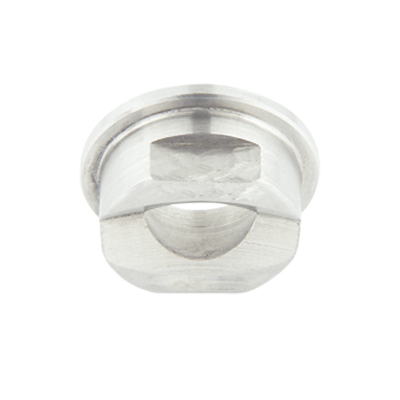

CD SERIES

FLOW RANGE : 6.5 TO 100 LPM
SPRAY ANGLE : 15, 30, 60, 90, 120
MATERIAL : SS704, SS316, BRASS
END CONNECTION : Tip Type


Flat spray nozzle

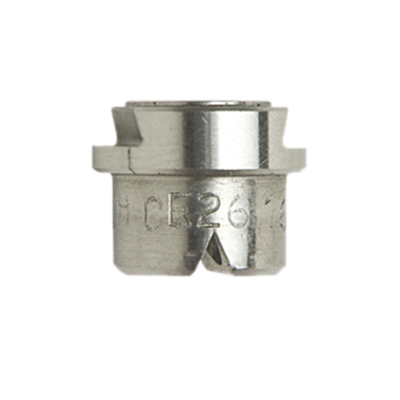

CE SERIES

FLOW RANGE : 0.5 TO 16 LPM
SPRAY ANGLE : 15, 30, 45, 60, 90, 120
MATERIAL : SS704, SS316, BRASS
END CONNECTION : Dove Tail Tip

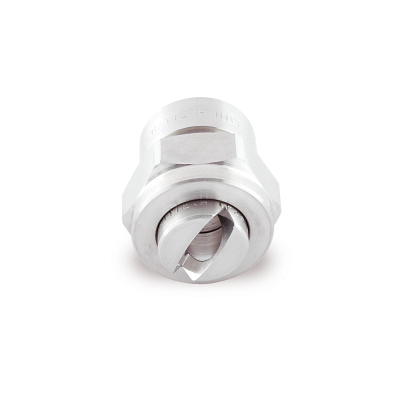

Flat spray nozzle

CF SERIES

FLOW RANGE : 6.5 TO 65 LPM
SPRAY ANGLE : 15, 30, 45, 60, 90, 120
MATERIAL : SS704, SS316, BRASS
END CONNECTION : Welded End


Flat spray nozzle

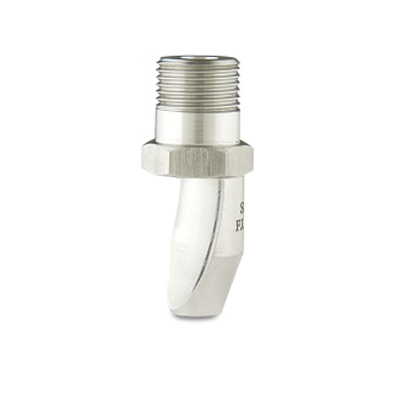

CG SERIES

FLOW RANGE : 3.5 TO 65 LPM
SPRAY ANGLE : 15, 30, 45, 60
MATERIAL : SS704, SS316, BRASS
END CONNECTION : 1/4", 3/8", 1/2", 3/4"


Flat spray nozzle

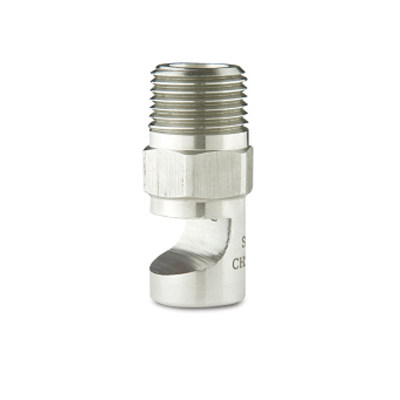

CH SERIES

FLOW RANGE : 1 TO 250 LPM
SPRAY ANGLE : 90, 140
MATERIAL : SS704, SS316, BRASS
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4", 1"


Flat spray nozzle

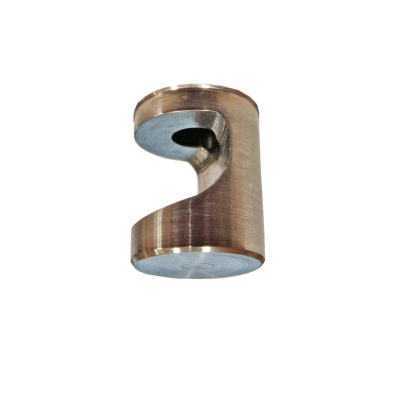

CI SERIES

FLOW RANGE : 0.5 TO 12.50 LPM
SPRAY ANGLE : 90, 140
MATERIAL : SS704, SS316, BRASS
END CONNECTION : Tip Type


Flat spray nozzle

CJ SERIES

ORIFICE RANGE : 1.0 MM
MATERIAL : ALUMINIUM, SS704, SS316
END CONNECTION : 1/4"


Flat spray nozzle

CK SERIES

FLOW RANGE : 15 TO 65 LPM
SPRAY ANGLE : 105
MATERIAL : POLYURETHANE
END CONNECTION : 3/4" BSP (M)


Flat spray nozzle

CN SERIES

FLOW RANGE : 2 TO 80 LPM
SPRAY ANGLE : 30, 45, 60, 90
MATERIAL : SS304/SS316 (With SS420 insert)
END CONNECTION : 1/8" 1/4", 3/8", 1/2"
